DEFENCE-GRADE GNSS SIMULATION
GNSS Testing for Contested and Degraded Environments

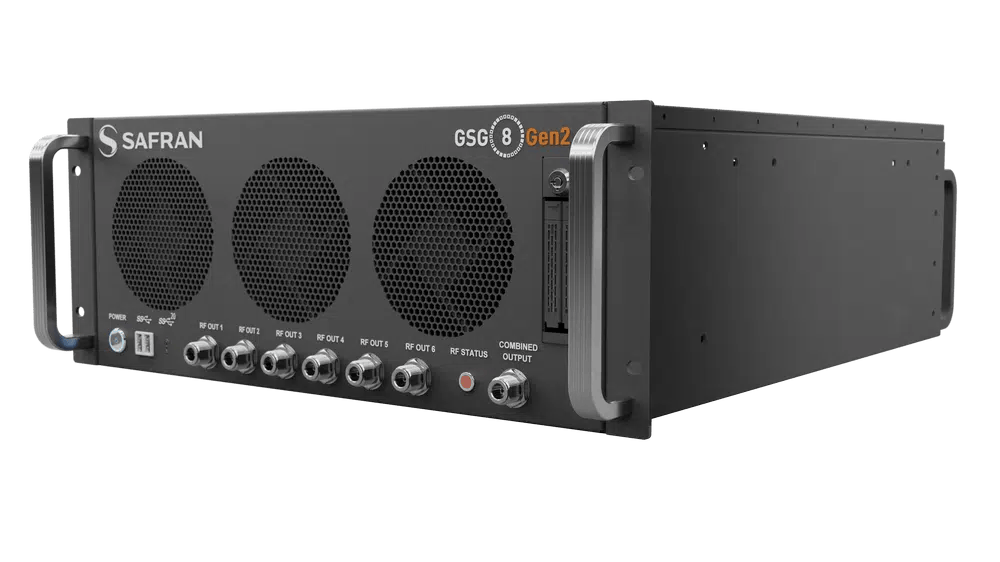

Modern defence operations depend on trusted Positioning, Navigation, and Timing (PNT) in environments where GNSS is actively disrupted. The GSG-8 Gen 2 GNSS Advanced Constellation Simulator is designed to validate system performance under realistic threat conditions—before deployment.
Using a software-defined, GPU-powered architecture, the GSG-8 Gen 2 enables defense organizations to simulate complex RF environments, electronic warfare scenarios, and multi-platform operations with unmatched realism and control.
Advanced Electronic Warfare Simulation
- GNSS jamming, spoofing, and meaconing
- Unlimited, independently controlled jammers
- Interference levels exceeding 110 dB J/S
- Repeatable, lab-based threat scenarios
Multi-Vehicle & Coordinated Testing
- Up to six vehicles or antennas per simulation
- Swarm and cooperative navigation scenarios
- Sub-nanosecond RF band synchronization
Multi-Constellation & Restricted Signals
- GPS (L1, L2, L5, P(Y))
- Galileo (including PRS)
- GLONASS, BeiDou-2/3
- QZSS, NavIC, SBAS, Xona
- Custom and proprietary signals
Trusted Timing & Synchronization
- Built-in TCXO with 1PPS and 10 MHz outputs
- External clock synchronization support
- High-end RF performance for mission-critical validation
The GSG-8 Gen 2 is designed for controlled environments:
From receiver qualification to countermeasure development, the GSG-8 Gen 2 provides defence teams with the confidence that GNSS-dependent systems will perform under real-world threat conditions.
Discover how the GSG-8 Gen 2 can support your defence GNSS testing and validation requirements.
